wireify
activeWireify connects your own Claude Code to the live Grasshopper canvas. Drop a Wireify socket, wire your inputs into it, and tell Claude what the component should do. It reads the data actually flowing through your wires — tree shapes, types, samples — writes a typed Python 3 script, runs it, reads Grasshopper’s runtime errors, and fixes them in place while you watch.
The socket converts into a stock Rhino Python 3 component: same position, wires kept, outputs solved. Saved definitions carry no Wireify dependency — colleagues without the plugin open your files like any other definition.
Wireify makes no AI calls and needs no account of its own. It hosts an MCP server and connects the Claude Code you already have — your subscription, your data boundaries. Requires Claude Code (paid plan or Console API credits).
Install from the Rhino Package Manager: in Rhino 8 on Windows (SR18 or newer), run _PackageManager and search "wireify", then restart Rhino. Mac and Rhino 7 support is planned.

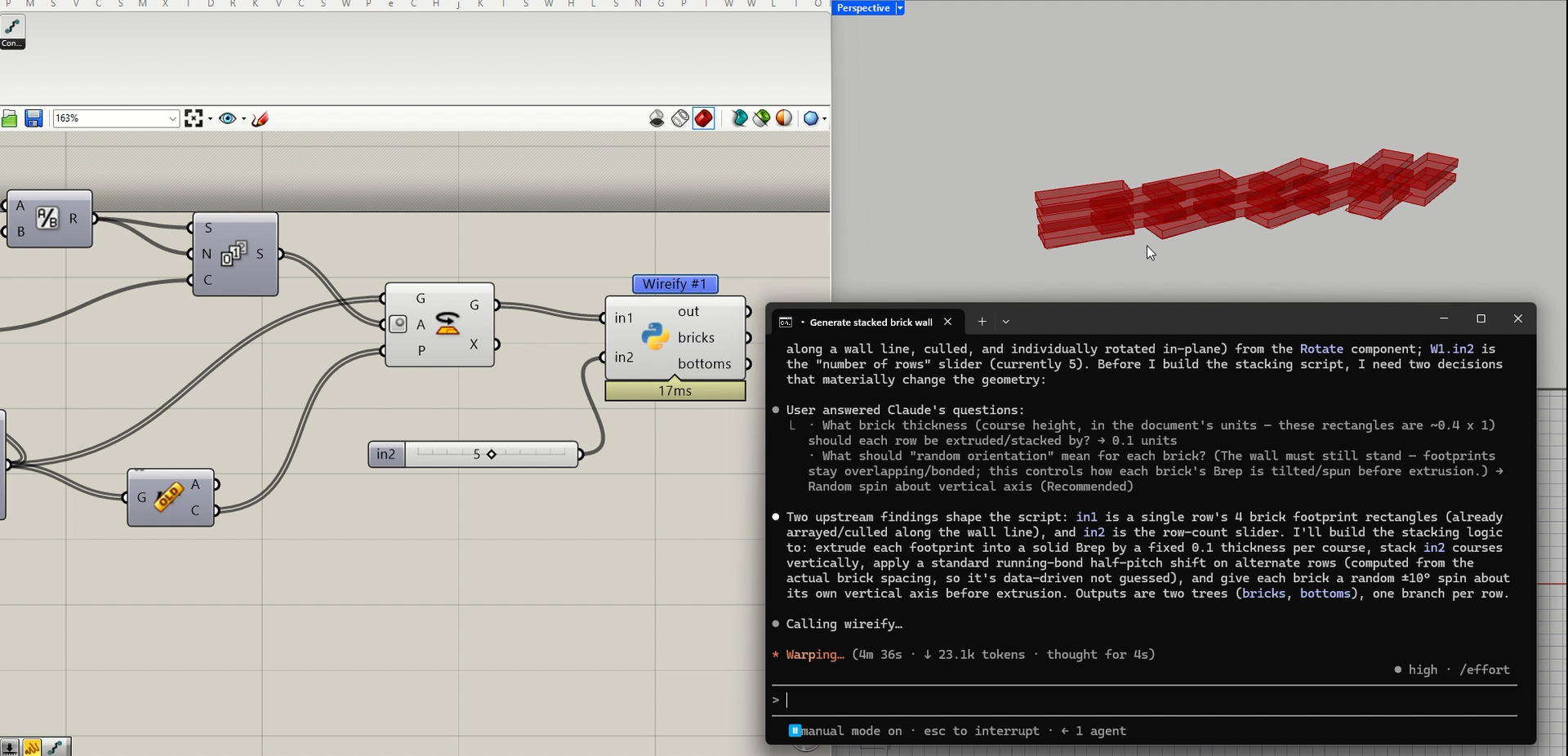

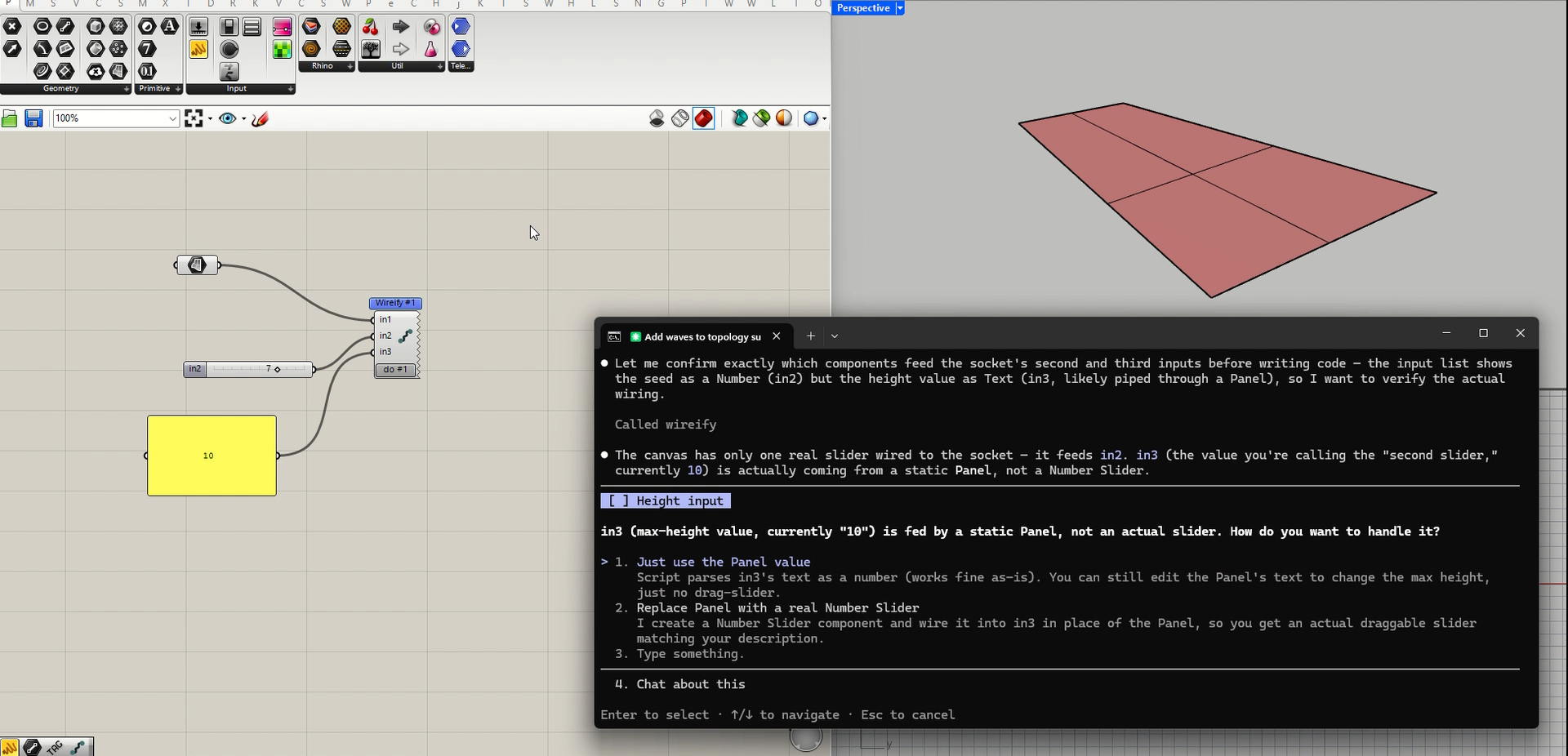

- Reads live wire data before writing a line — tree shapes, types, samples — then verifies its own component against Grasshopper’s runtime errors.
- Converts in place to a stock Python 3 component: wires kept, one undo step, zero plugin dependency in saved files.
- Each definition gets its own agent home with built-in Grasshopper skills and a memory that accumulates what worked — Claude starts warm and gets warmer per file.
- Built on the official MCP C# SDK at the current protocol revision — long-running operations run as background MCP tasks, and sessions default to Sonnet 5 at high reasoning effort.
